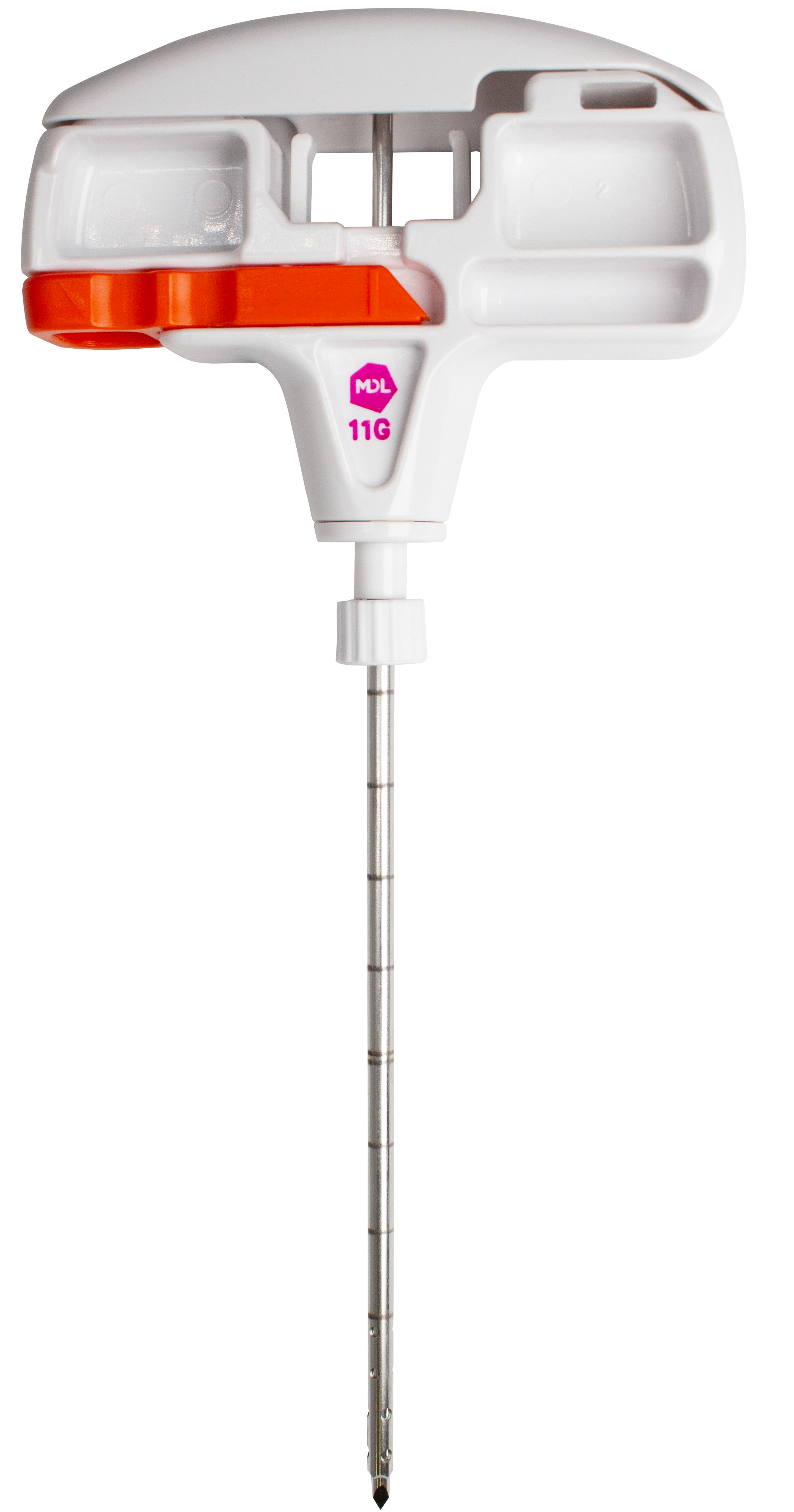

CELL-HARVESTOR™

Next Generation Technology for Harvesting Stem Cells

Better Design

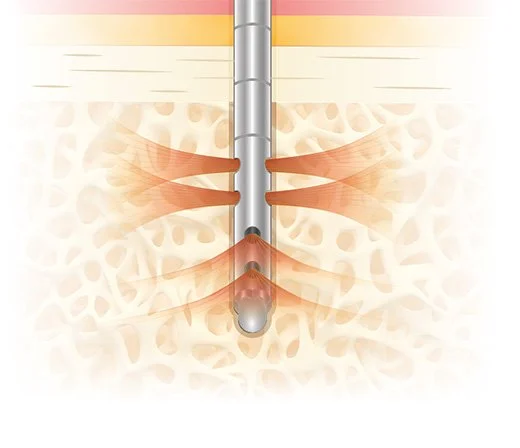

  • The patented multi-radial design harvests cellular-rich marrow simultaneously from 6 ports spaced around a 360-degree radius.

  • The patented design maximizes the harvesting of progenitor and mesenchymal cells while minimizing dilution from peripheral blood.

  • The regenerative cells lost in the RBC layer of concentration systems are saved in the Cell-HarvestOR™ procedure.

Better Technique

  • The recommended technique produces a volume of 10ml of cellularly-rich bone marrow from 3 simple pulls.

  • The patented handle supports repositioning and harvesting by a push of a button.

  • The device results in significant cost savings, including time saved in the O/R performing the centrifugation procedure.

  • The same device can be used in all anatomical sources of bone marrow, including Iliac Crest, Femur, Tibia, Humerus, Calcaneous, and Pedicle.

Better Safety Profile

  • The shorter cannula increases stability of the device during insertion and harvesting.

  • The diamond trocar tip provides stability during insertion, and the blunt stylet provides safety during positioning inside the marrow space.

  • The companion Bone-HarvestOR™ device enables a less invasive approach to sourcing bone dowels for maximum fusion potential.

Clinical Applications with Established Reimbursement

  • Spine Fusion

  • Fracture Non-Union

  • RCR Augmentation

  • Meniscal Root Repair

  • Articular Cartilage Defects

  • Triple Arthrodesis

  • 1st MTP Fusion

  • Bone Marrow Lesions

  • Tendonopathy

Why count CFU-Fs?

CFU-f (Colony Forming Unit - Fibroblast) counts are the accepted metric for measuring the regenerative potential of bone marrow. TNC (total nucleic cell) counts include nucleated red blood cells and white blood cells from the peripheral blood component of the biologic drawn which have little regenerative capability. Published research consistently uses CFU-f counts to identify the thresholds for clinical efficacy.

Simple Harvesting Technique

  1. Introduce the heparin-rinsed device into the marrow space.

  2. Draw 3ml of Marrow.

  3. Guide the device approx. 3cm deeper into marrow space.

  4. Draw 3ml of Marrow.

  5. Depress the patented device button to retract the device.

  6. Draw 3ml of Marrow.

  7. Done!
